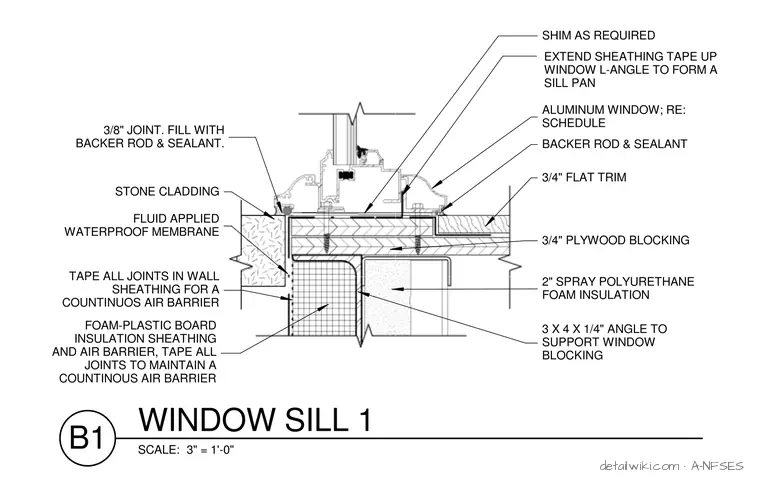

An aluminum window unit rests on three-quarter-inch plywood blocking supported by a three-by-four-by-quarter-inch steel angle. Shims are placed as required beneath the frame. Sheathing tape extends up the window angle to form a continuous sill pan. A three-eighths-inch joint filled with backer rod and sealant separates the aluminum sill from the adjacent stone cladding over a fluid-applied waterproof membrane. Wall construction incorporates foam-plastic board insulation sheathing and two inches of spray polyurethane foam insulation, with all sheathing joints taped to maintain a continuous air barrier. Three-quarter-inch flat trim finishes the interior sill condition.
2" SPRAY POLYURETHANE FOAM INSULATION 3/4" PLYWOOD BLOCKING 3/4" FLAT TRIM ALUMINUM WINDOW; RE: SCHEDULE BACKER ROD & SEALANT FOAM-PLASTIC BOARD INSULATION SHEATHING AND AIR BARRIER, TAPE ALL JOINTS TO MAINTAIN A COUNTINOUS AIR BARRIER TAPE ALL JOINTS IN WALL SHEATHING FOR A COUNTINUOS AIR BARRIER FLUID APPLIED WATERPROOF MEMBRANE 3/8" JOINT. FILL WITH BACKER ROD & SEALANT. STONE CLADDING 3 X 4 X 1/4" ANGLE TO SUPPORT WINDOW BLOCKING SHIM AS REQUIRED EXTEND SHEATHING TAPE UP WINDOW L-ANGLE TO FORM A SILL PAN SCALE: 3" = 1'-0" B1 WINDOW SILL 1
