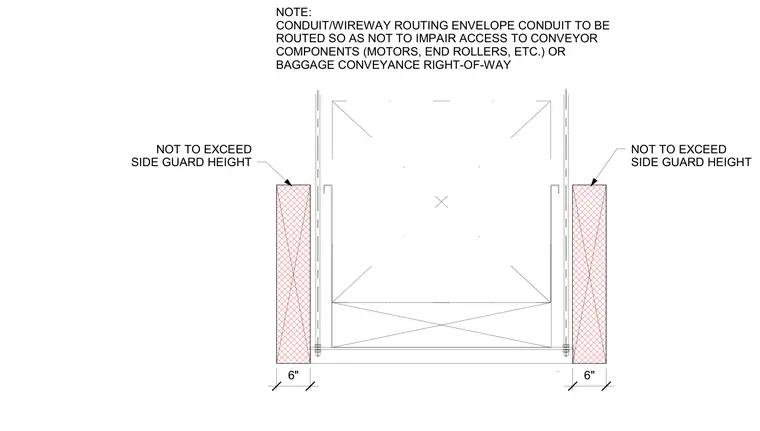

Conduit and wireway routing envelopes must be kept within the specified clearance zone so as not to impair access to conveyor components such as motors and end rollers or encroach upon the baggage conveyance right-of-way. The side guards establish a height limit not to be exceeded by the routing envelope. Horizontal dimensions indicate a six-inch clearance boundary on each side of the assembly.
NOT TO EXCEED SIDE GUARD HEIGHT NOT TO EXCEED SIDE GUARD HEIGHT NOTE: CONDUIT/WIREWAY ROUTING ENVELOPE CONDUIT TO BE ROUTED SO AS NOT TO IMPAIR ACCESS TO CONVEYOR COMPONENTS (MOTORS, END ROLLERS, ETC.) OR BAGGAGE CONVEYANCE RIGHT-OF-WAY 6" 6"
