Architectural · A-NFDFR

Roof Curtain Wall Crown Courtyard Overhang Section

Materials

Steel Aluminum Metal (misc.)

Elements

Roofs Waterproofing / Flashing Insulation Drainage Millwork / Casework Connections / Plates

Connections

HSS Connection

About this detail

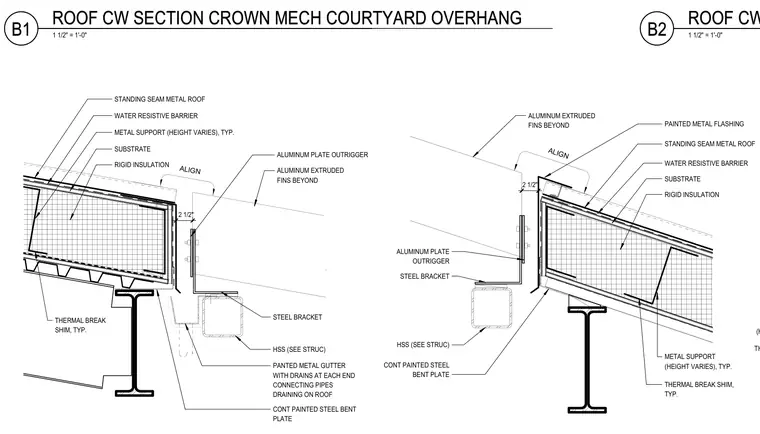

A standing seam metal roof assembly terminates at a courtyard overhang. The roof construction includes rigid insulation, a water-resistive barrier, a substrate, and continuous thermal break shims supported by structural steel framing. An aluminum plate outrigger connects to a painted steel bracket fastened to a hollow structural section. Additional elements feature painted metal flashing, a continuous painted steel bent plate, and a painted metal gutter with drains. Aluminum extruded fins project beyond the assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
