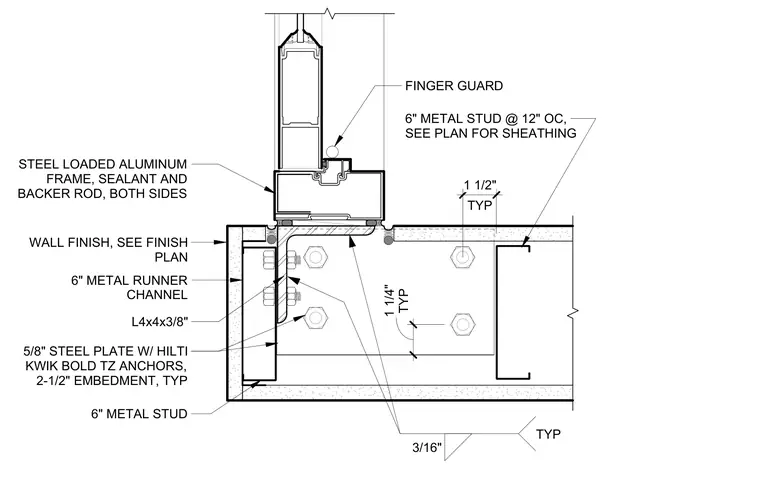

An aluminum door frame sits adjacent to a cold-formed steel stud partition framed with six-inch metal studs spaced at twelve inches on center. A steel loaded aluminum frame is secured with sealant and backer rod on both sides of the joint. An angle measuring four by four by three-eighths inches connects the frame assembly to a five-eighths-inch steel embed plate anchored with Hilti Kwik Bolt TZ anchors providing two and a half inches of embedment. Wall finishes are applied over the framing, and a finger guard is incorporated into the aluminum frame profile.
6" METAL STUD @ 12" OC, SEE PLAN FOR SHEATHING TYP 1 1/4" TYP 1 1/2" 3/16" TYP STEEL LOADED ALUMINUM FRAME, SEALANT AND BACKER ROD, BOTH SIDES WALL FINISH, SEE FINISH PLAN 5/8" STEEL PLATE W/ HILTI KWIK BOLD TZ ANCHORS, 2-1/2" EMBEDMENT, TYP 6" METAL STUD 6" METAL RUNNER CHANNEL L4x4x3/8" FINGER GUARD
