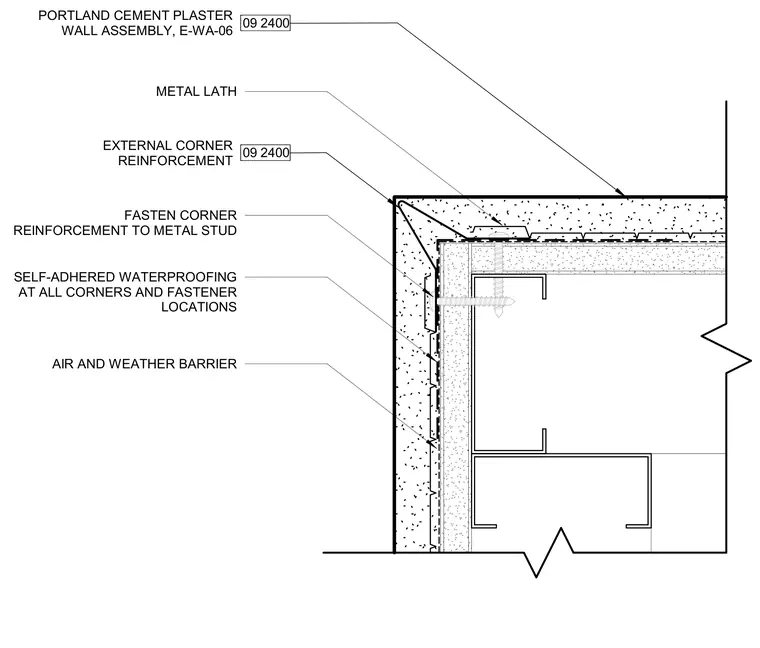

An external plaster corner assembly features cold-formed steel studs wrapped with an air and weather barrier and self-adhered waterproofing at all corners and fastener locations. Metal lath provides the base for the Portland cement plaster wall assembly. External corner reinforcement is fastened directly to the metal stud to protect the corner from impact and cracking.
09 2400 PORTLAND CEMENT PLASTER WALL ASSEMBLY, E-WA-06 METAL LATH FASTEN CORNER REINFORCEMENT TO METAL STUD SELF-ADHERED WATERPROOFING AT ALL CORNERS AND FASTENER LOCATIONS 09 2400 EXTERNAL CORNER REINFORCEMENT AIR AND WEATHER BARRIER
