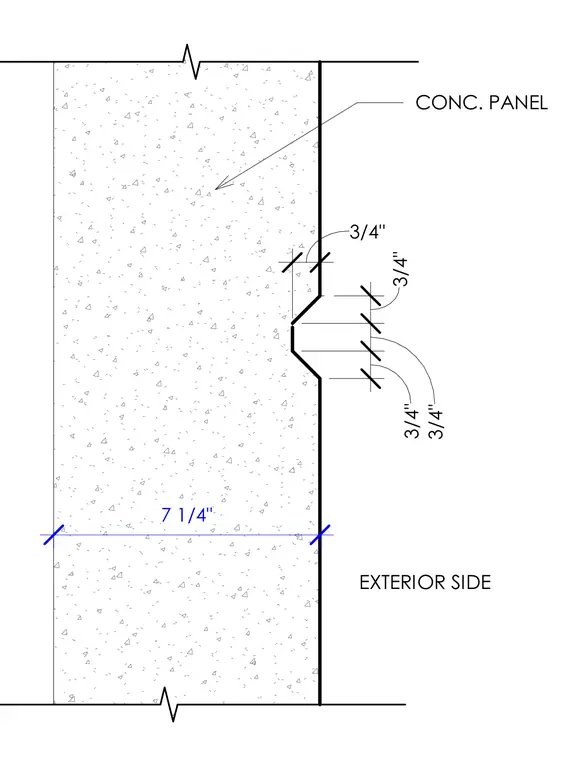

An exterior concrete wall panel includes a three-quarter-inch architectural reveal formed on the outer face. The concrete panel has an overall thickness of seven and one-quarter inches. The reveal profile consists of symmetrical sloped cuts measuring three-quarters of an inch across.
EXTERIOR SIDE CONC. PANEL 3/4" 3/4" 3/4" 3/4" 7 1/4"
