Cold-formed steel wall opening framing uses 362T200-68 unpunched track members fastened with one number 10-16 waferhead screw at each flange. This detail applies to openings up to 8 feet 6 inches wide.

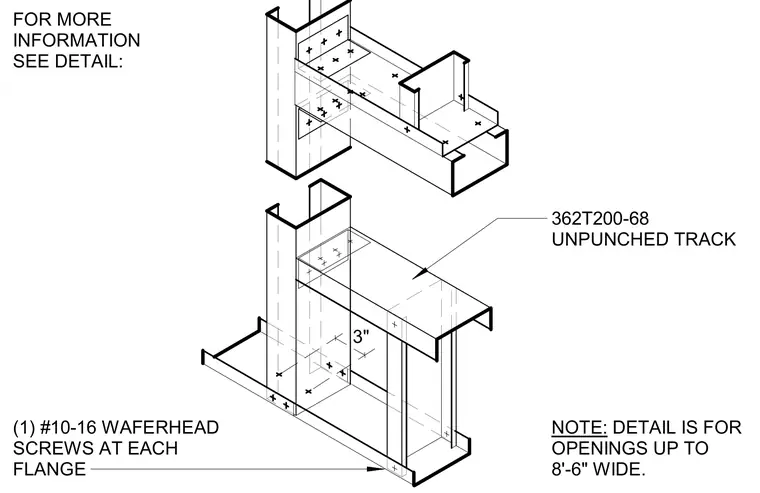

3" (1) #10-16 WAFERHEAD SCREWS AT EACH FLANGE 362T200-68 UNPUNCHED TRACK FOR MORE INFORMATION SEE DETAIL: NOTE: DETAIL IS FOR OPENINGS UP TO 8'-6" WIDE.
