Architectural · A-NEQ74

Vent Pipe Flashing - Small

Materials

Elements

Roofs Decks Waterproofing / Flashing Insulation Roof / Floor Openings

About this detail

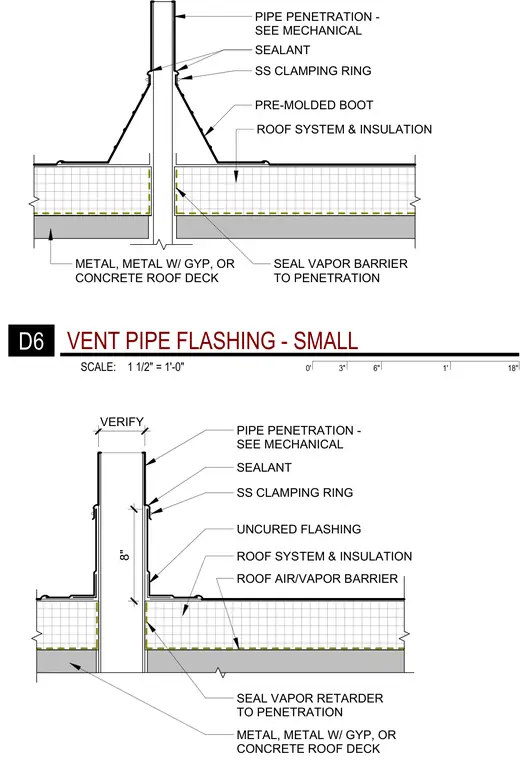

A small vent pipe penetrates a metal, metal with gypsum, or concrete roof deck assembly. The penetration passes through the roof system and insulation, with the vapor retarder sealed directly to the pipe. A pre-molded boot or uncured flashing covers the base, secured at the top with a stainless steel clamping ring and sealed with joint sealant.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
