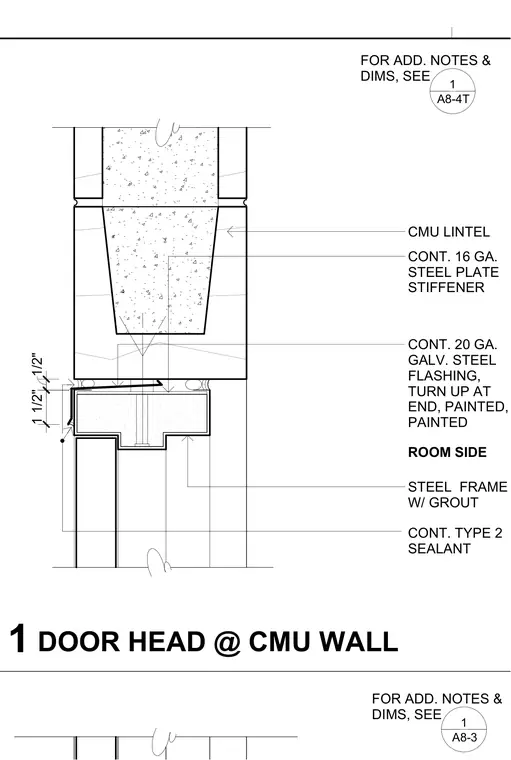

A door head condition at a concrete masonry unit wall features a steel frame filled with grout. A continuous sixteen-gauge steel plate stiffener is integrated into the assembly above the frame. A continuous twenty-gauge galvanized steel flashing with upturned ends is installed and painted, accompanied by a continuous type two sealant joint at the room side. The overhead structure incorporates a reinforced concrete masonry unit lintel.
ROOM SIDE 1 1/2" CONT. 20 GA. GALV. STEEL FLASHING, TURN UP AT END, PAINTED, PAINTED CONT. TYPE 2 SEALANT CONT. 16 GA. STEEL PLATE STIFFENER STEEL FRAME W/ GROUT 1/2" CMU LINTEL FOR ADD. NOTES & DIMS, SEE 1 A8-4T FOR ADD. NOTES & DIMS, SEE 1 A8-3 1 DOOR HEAD @ CMU WALL
