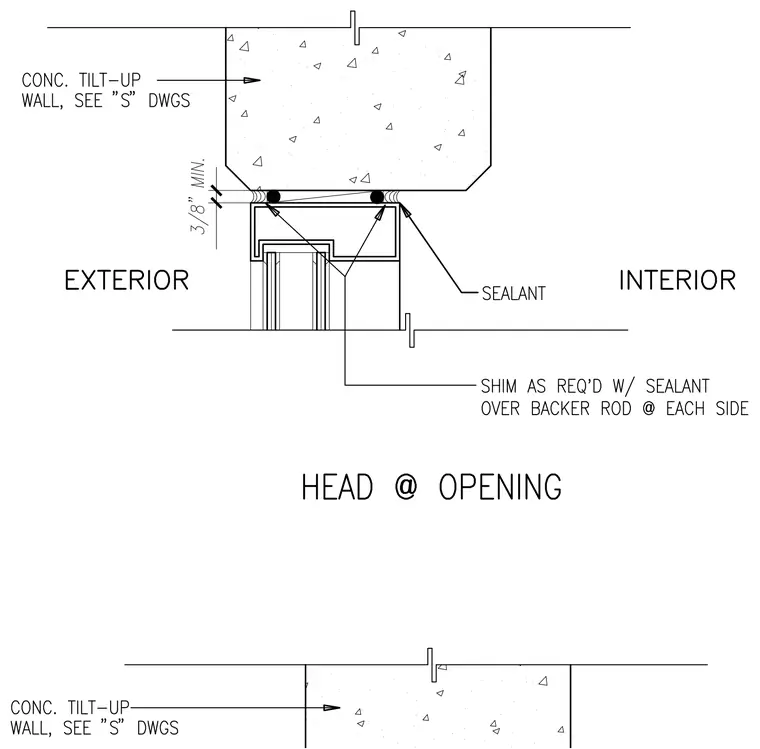

The window or storefront head frames into a concrete tilt-up wall opening with a three-eighths-inch minimum joint clearance. Shims are placed as required with sealant over backer rod at each side of the head framing. A sealant joint seals the exterior and interior junction between the concrete wall and the head frame.
