Architectural · A-NEHZG

Upper Wall Bracing Attachment at Cold-Formed Steel Stud

Materials

Elements

About this detail

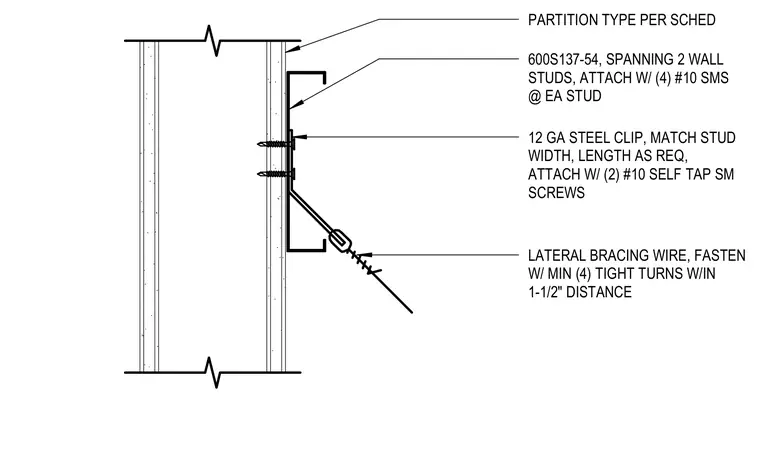

The assembly attaches to a partition type per schedule with a 600S137-54 cold-formed steel member spanning two wall studs. The clip is fabricated from 12-gauge steel matching the stud width and length as required, secured with four number 10 sheet metal screws at each stud. A lateral bracing wire connects to the clip using two number 10 self-tapping sheet metal screws and is fastened with a minimum of four tight turns within a one-and-a-half-inch distance.
