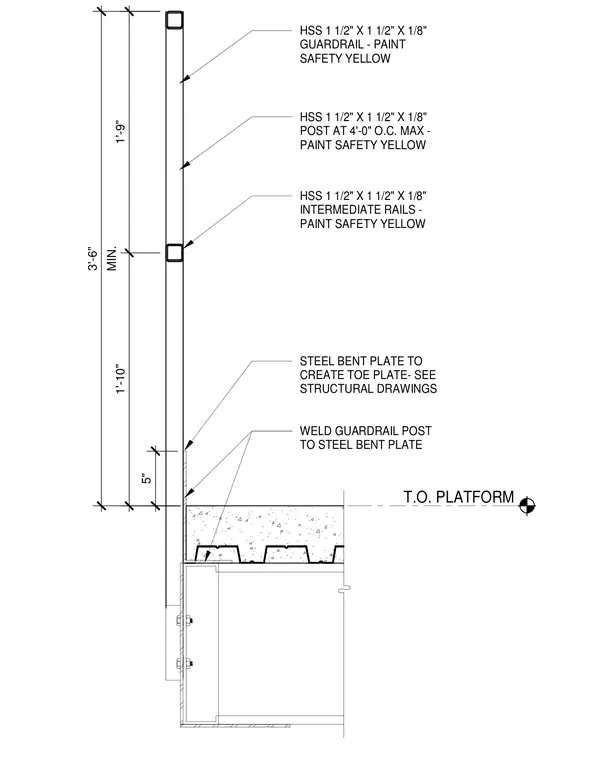

A guardrail assembly is constructed from 1 1/2 inch by 1 1/2 inch by 1/8 inch hollow structural section members painted safety yellow. Posts are spaced at a maximum of 4 feet on center and welded directly to a steel bent plate that forms a toe plate at the platform level. Intermediate rails and a top guardrail complete the assembly, rising to a minimum height of 3 feet 6 inches above the top of the platform. The bent plate connects to the structural framing of the platform edge.
1'-9" 1'-10" MIN. 3'-6" 5" HSS 1 1/2" X 1 1/2" X 1/8" GUARDRAIL - PAINT SAFETY YELLOW HSS 1 1/2" X 1 1/2" X 1/8" POST AT 4'-0" O.C. MAX - PAINT SAFETY YELLOW HSS 1 1/2" X 1 1/2" X 1/8" INTERMEDIATE RAILS - PAINT SAFETY YELLOW STEEL BENT PLATE TO CREATE TOE PLATE- SEE STRUCTURAL DRAWINGS WELD GUARDRAIL POST TO STEEL BENT PLATE T.O. PLATFORM
