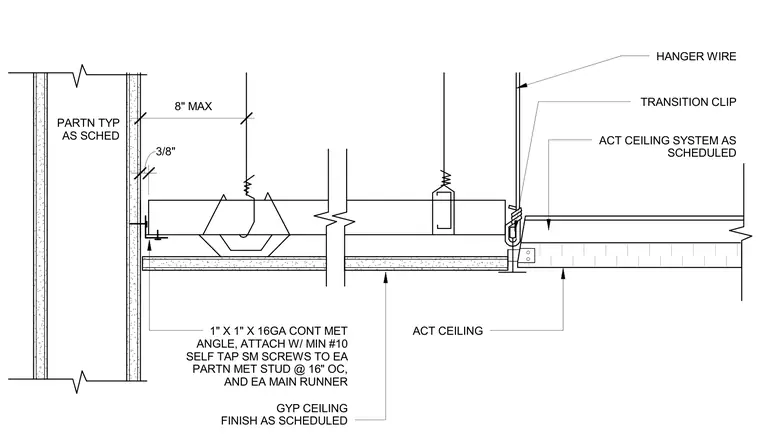

A continuous one-inch by one-inch by sixteen-gauge metal angle is attached to each partition metal stud at sixteen inches on center using a minimum of number ten self-tapping sheet metal screws. The gypsum ceiling finish meets the partition with a three-eighths inch gap. An acoustical ceiling tile system transitions from the gypsum ceiling via a specialized transition clip suspended by hanger wires spaced up to eight inches maximum.
1" X 1" X 16GA CONT MET ANGLE, ATTACH W/ MIN #10 SELF TAP SM SCREWS TO EA PARTN MET STUD @ 16" OC, AND EA MAIN RUNNER HANGER WIRE GYP CEILING FINISH AS SCHEDULED ACT CEILING ACT CEILING SYSTEM AS SCHEDULED TRANSITION CLIP PARTN TYP AS SCHED 3/8" 8" MAX
