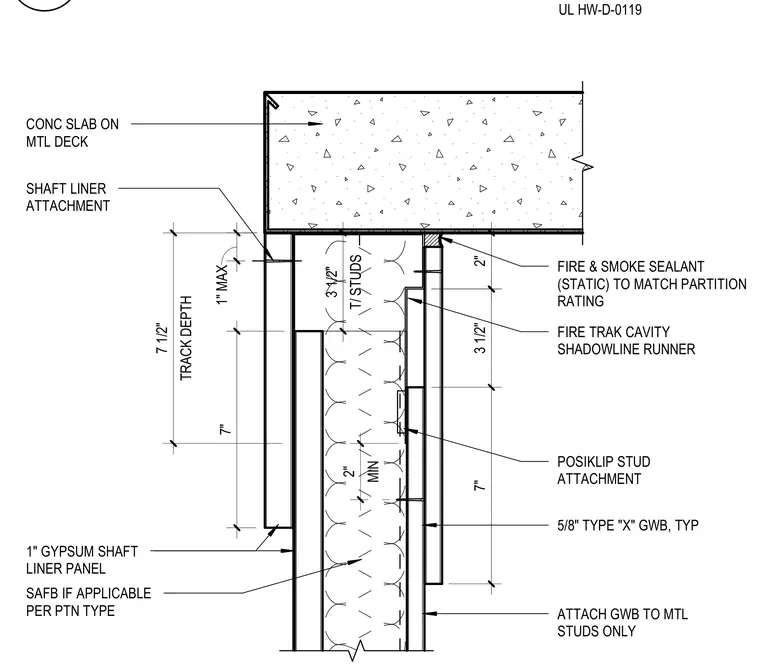

A two-hour rated shaftwall head assembly connects to a concrete slab on metal deck using a fire trak cavity shadowline runner. A one-inch gypsum shaft liner panel is secured with shaft liner attachment clips, paired with sound attenuation fire blanket insulation as required per partition type. Posiklip stud attachments secure the framing, while five-eighths-inch Type X gypsum board is fastened exclusively to the metal studs. Fire and smoke sealant with a static rating matching the partition is applied at the slab junction.
CONC SLAB ON MTL DECK POSIKLIP STUD ATTACHMENT 5/8" TYPE "X" GWB, TYP 1" MAX 1" GYPSUM SHAFT LINER PANEL FIRE TRAK CAVITY SHADOWLINE RUNNER SHAFT LINER ATTACHMENT SAFB IF APPLICABLE PER PTN TYPE TRACK DEPTH 7 1/2" 7" 2" T/ STUDS 3 1/2" FIRE & SMOKE SEALANT (STATIC) TO MATCH PARTITION RATING ATTACH GWB TO MTL STUDS ONLY MIN 2" 7" 3 1/2" FIRE RATING: 2 HOUR UL HW-D-0119
