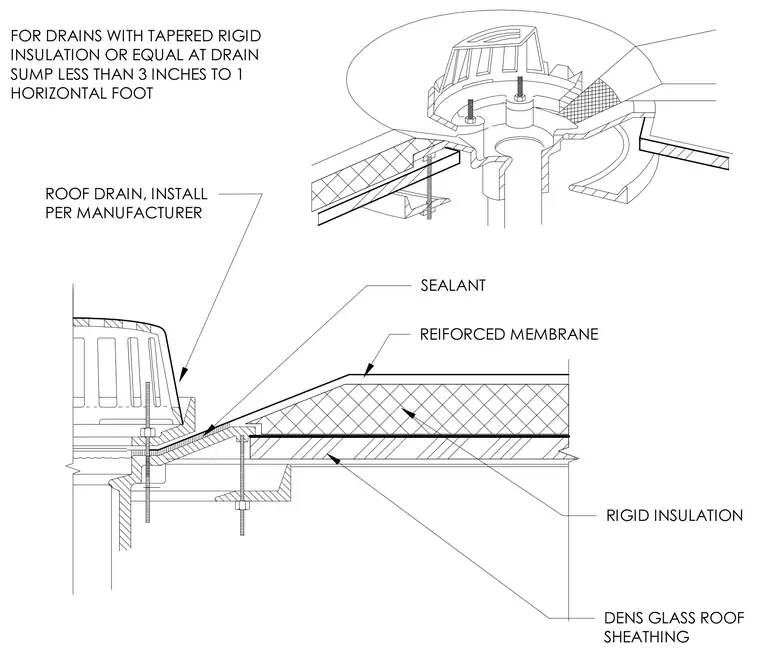

A roof drain installation is set into DensGlass roof sheathing with tapered rigid insulation. The assembly incorporates a reinforced membrane over the insulation, terminating at the roof drain bowl with a continuous bead of sealant. Tapered rigid insulation slopes toward the drain at a minimum of three inches to one horizontal foot at the drain sump. The roof drain is installed per the manufacturer's specifications with threaded fasteners and clamping rings securing the membrane.
DENS GLASS ROOF SHEATHING FOR DRAINS WITH TAPERED RIGID INSULATION OR EQUAL AT DRAIN SUMP LESS THAN 3 INCHES TO 1 HORIZONTAL FOOT ROOF DRAIN, INSTALL PER MANUFACTURER SEALANT REIFORCED MEMBRANE RIGID INSULATION
