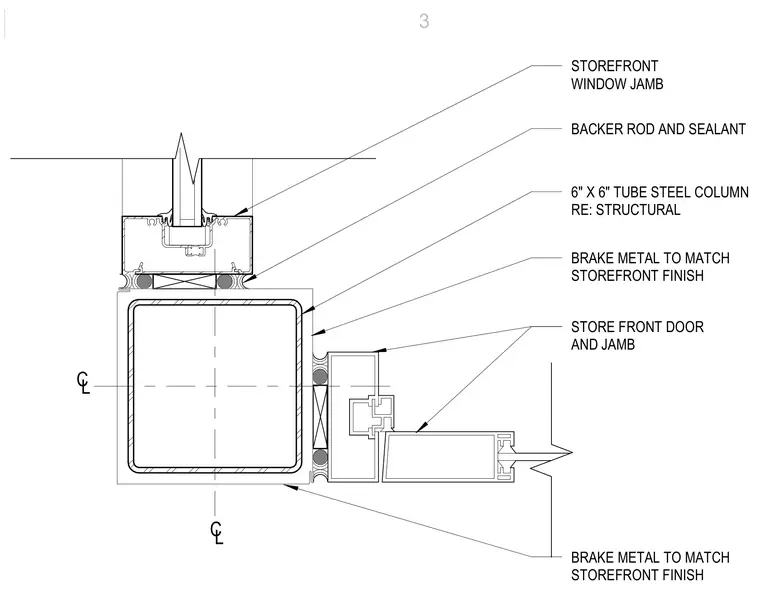

A six-inch by six-inch tube steel column acts as the structural support at the opening. Custom brake metal matching the storefront finish wraps around the column profile. A storefront window jamb abuts one side, sealed with backer rod and sealant. A storefront door and frame adjoins another face of the column.
STOREFRONT WINDOW JAMB BACKER ROD AND SEALANT 6" X 6" TUBE STEEL COLUMN RE: STRUCTURAL BRAKE METAL TO MATCH STOREFRONT FINISH STORE FRONT DOOR AND JAMB CL CL BRAKE METAL TO MATCH STOREFRONT FINISH 3
