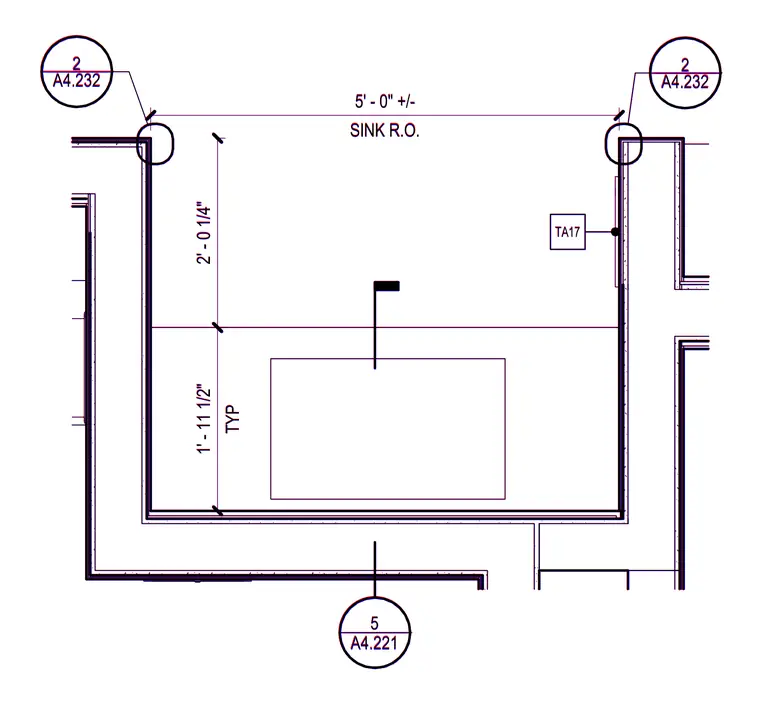

A sink rough-in floor plan layout is detailed with overall and typical dimensions. The workspace features a five-foot-plus clearance with a sink rough-in dimensioned at one foot eleven and one-half inches typical and two feet and one-quarter inch. Section and detail reference bubbles are provided at the walls.
2' - 0 1/4" TYP 1' - 11 1/2" SINK R.O. 5' - 0" +/- TA17 5 A4.221 ________ ________ ________ ________ 2 A4.232 ________ ________ 2 A4.232 2' - 0 1/4" TYP 1' - 11 1/2" SINK R.O. 5' - 0" +/- TA17 5 A4.221 ________ ________ ________ ________ 2 A4.232 ________ ________ 2 A4.232
