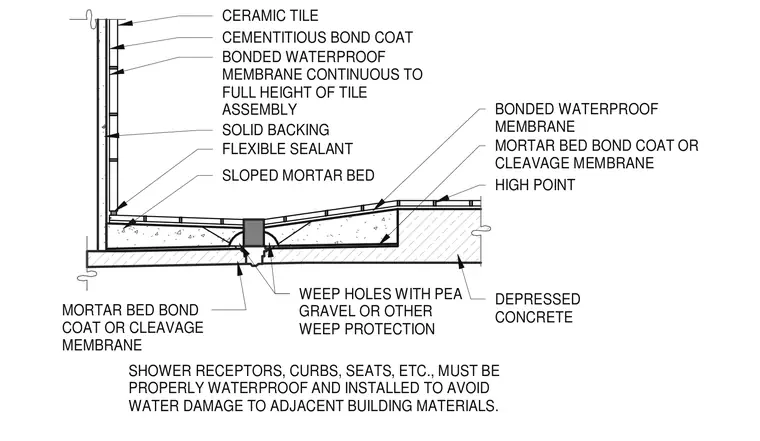

This ceramic tile shower receptor assembly sets over a depressed concrete subfloor with a continuous bonded waterproof membrane extending to the full height of the tile assembly. A sloped mortar bed rests over a mortar bed bond coat or cleavage membrane, directing moisture toward the drain equipped with weep holes protected by pea gravel. Flexible sealant is applied at the wall-to-floor transition joint. Solid backing supports the vertical tile assembly set with a cementitious bond coat.
CERAMIC TILE CEMENTITIOUS BOND COAT BONDED WATERPROOF MEMBRANE CONTINUOUS TO FULL HEIGHT OF TILE ASSEMBLY SOLID BACKING FLEXIBLE SEALANT SLOPED MORTAR BED MORTAR BED BOND COAT OR CLEAVAGE MEMBRANE DEPRESSED CONCRETE HIGH POINT MORTAR BED BOND COAT OR CLEAVAGE MEMBRANE BONDED WATERPROOF MEMBRANE WEEP HOLES WITH PEA GRAVEL OR OTHER WEEP PROTECTION SHOWER RECEPTORS, CURBS, SEATS, ETC., MUST BE PROPERLY WATERPROOF AND INSTALLED TO AVOID WATER DAMAGE TO ADJACENT BUILDING MATERIALS.
