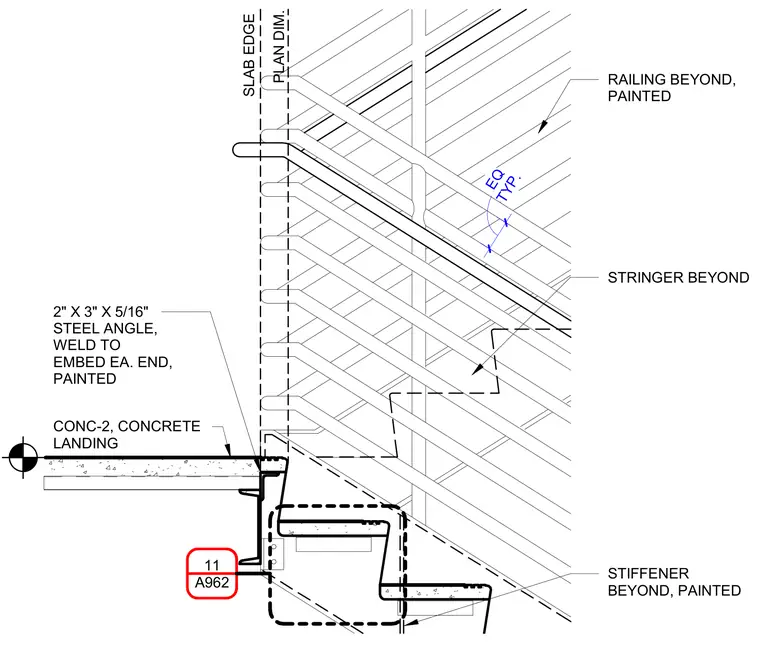

A concrete landing slab terminates at a slab edge dimension line, meeting a steel angle welded to an embed plate at each end. A painted steel stair stringer continues below with a painted stiffener plate visible beyond. A painted steel guardrail assembly rises along the stair and landing edge with typical equal spacing between pickets. All exposed steel elements receive a painted finish.
A962 11 SLAB EDGE PLAN DIM. RAILING BEYOND, PAINTED STRINGER BEYOND STIFFENER BEYOND, PAINTED CONC-2, CONCRETE LANDING 2" X 3" X 5/16" STEEL ANGLE, WELD TO EMBED EA. END, PAINTED TYP. EQ
