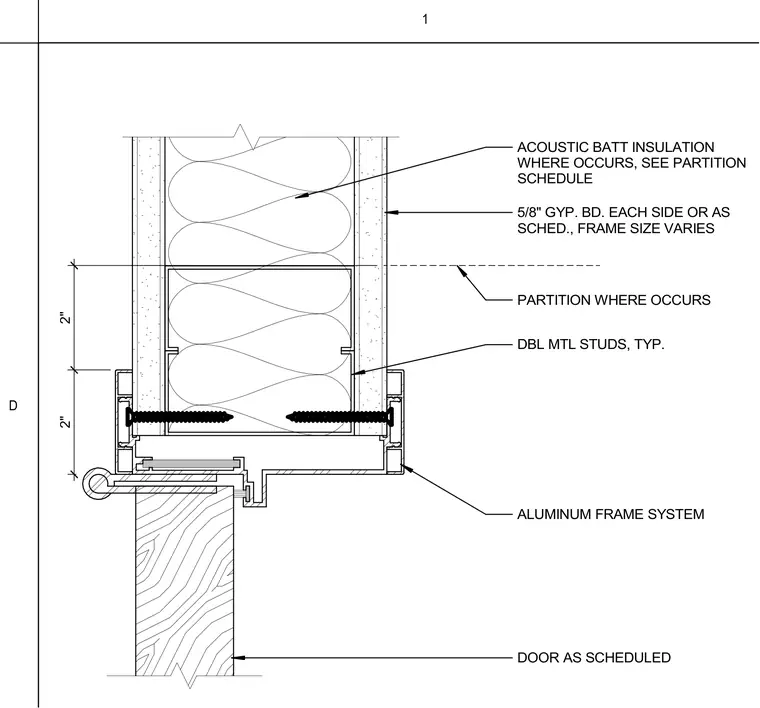

An aluminum frame system forms the door jamb, anchored into double metal studs within a partition wall. Each side of the partition receives five-eighths inch gypsum board or as specified by the partition schedule, with frame size varying. Acoustic batt insulation fills the partition cavity where required. A door as scheduled interfaces with the aluminum frame profile.
ACOUSTIC BATT INSULATION WHERE OCCURS, SEE PARTITION SCHEDULE 5/8" GYP. BD. EACH SIDE OR AS SCHED., FRAME SIZE VARIES DBL MTL STUDS, TYP. 2" 2" PARTITION WHERE OCCURS ALUMINUM FRAME SYSTEM DOOR AS SCHEDULED D 1
