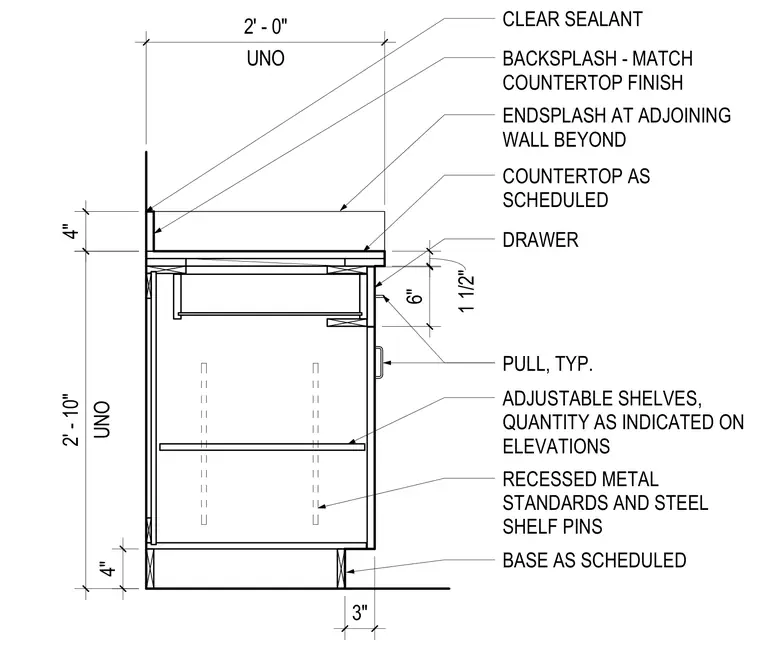

This cabinet assembly features a base supported by a toe kick sized at three inches deep and four inches high. Adjustable shelves rest on recessed metal standards and steel shelf pins for variable storage heights. A drawer sits beneath the countertop which is finished per the architectural schedule. A matching backsplash and endsplash seal against the adjoining wall with clear sealant, topped with typical pulls.
4" 4" UNO 2' - 0" UNO 2' - 10" 1 1/2" 3" PULL, TYP. BASE AS SCHEDULED 6" DRAWER RECESSED METAL STANDARDS AND STEEL SHELF PINS ADJUSTABLE SHELVES, QUANTITY AS INDICATED ON ELEVATIONS BACKSPLASH - MATCH COUNTERTOP FINISH ENDSPLASH AT ADJOINING WALL BEYOND COUNTERTOP AS SCHEDULED CLEAR SEALANT
