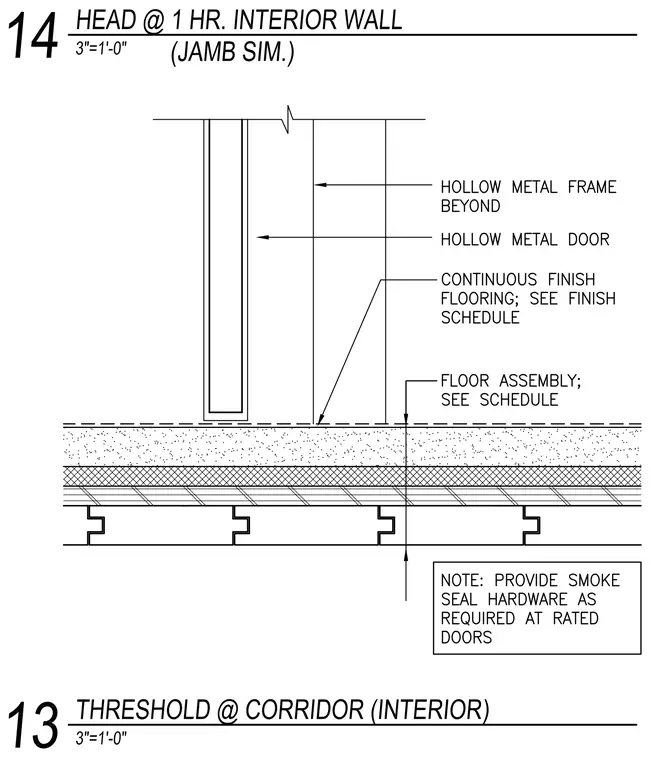

Threshold condition at a hollow metal door within an interior one-hour rated wall assembly. A hollow metal frame and hollow metal door are installed above a continuous finish flooring layer and multi-layer floor assembly. Smoke seal hardware is provided as required at rated doors per project specifications.
