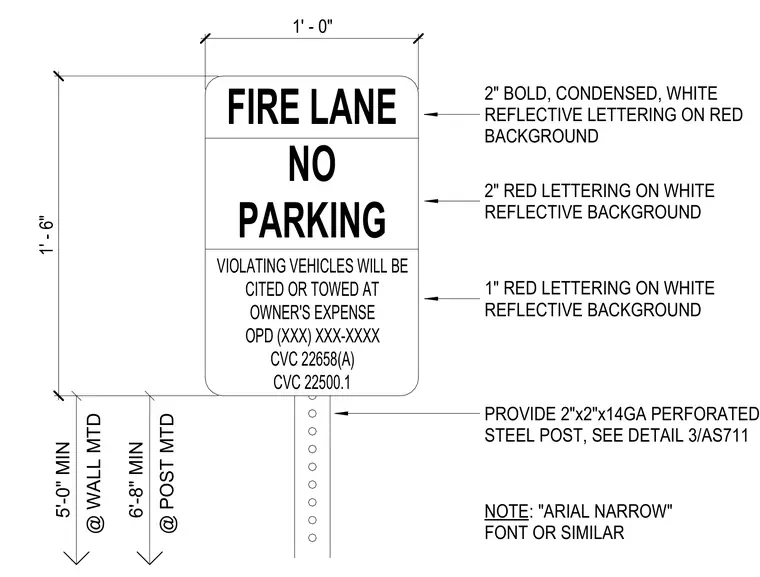

A fire lane no parking sign assembly measures one foot wide by one foot six inches high. The sign features bold condensed white reflective lettering on a red background at the top, red lettering on a white reflective background in the middle and lower sections, and text specifying towing enforcement and municipal codes. The sign mounts on a two-inch by two-inch by fourteen-gauge perforated galvanized steel post. Minimum mounting heights are specified as five feet for wall-mounted installations and six feet eight inches for post-mounted installations. Typography utilizes an Arial Narrow font or similar.
1' - 0" 1' - 6" 1" RED LETTERING ON WHITE REFLECTIVE BACKGROUND 5'-0" MIN @ WALL MTD 6'-8" MIN @ POST MTD PROVIDE 2"x2"x14GA PERFORATED GALV. STEEL POST, SEE DETAIL 3/AS711 2" BOLD, CONDENSED, WHITE REFLECTIVE LETTERING ON RED BACKGROUND 2" RED LETTERING ON WHITE REFLECTIVE BACKGROUND NO PARKING FIRE LANE VIOLATING VEHICLES WILL BE CITED OR TOWED AT OWNER'S EXPENSE OPD (XXX) XXX-XXXX CVC 22658(A) CVC 22500.1 NOTE: "ARIAL NARROW" FONT OR SIMILAR
