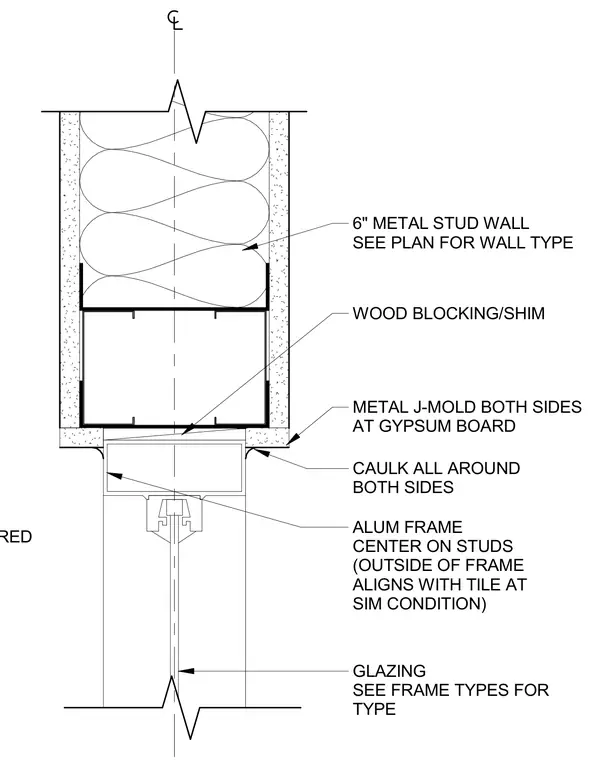

An aluminum frame is centered on a six-inch metal stud wall with wood blocking and shims providing anchorage. Metal J-molding finishes both sides of the gypsum board at the frame transition. Continuous caulking is applied all around both sides of the frame joint. Glazing type is specified per the window frame schedule.
WOOD BLOCKING/SHIM AS REQUIRED METAL J-MOLD BOTH SIDES AT GYPSUM BOARD ALUM FRAME CENTER ON STUDS (OUTSIDE OF FRAME ALIGNS WITH TILE AT SIM CONDITION) CAULK ALL AROUND BOTH SIDES GLAZING SEE FRAME TYPES FOR TYPE 6" METAL STUD WALL SEE PLAN FOR WALL TYPE WOOD BLOCKING/SHIM
