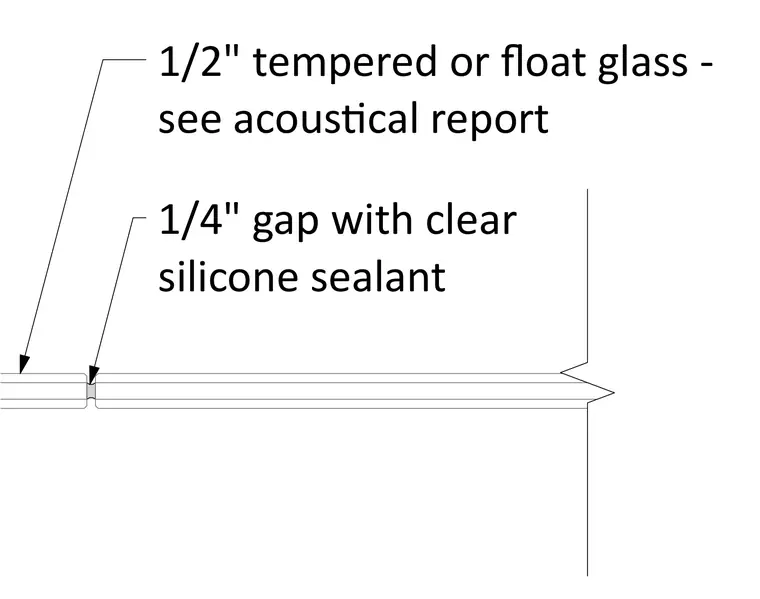

Adjacent lites of one-half-inch thick tempered or float glass are joined at a vertical butt edge, with specific glass thicknesses and types governed by the project acoustical report. A one-quarter-inch joint gap between the glass edges is sealed with clear silicone sealant.
1/2" tempered or float glass - see acous Ɵcal report 1/4" gap with clear silicone sealant
