Architectural · A-NCSR9

Sink Casework

Materials

Elements

About this detail

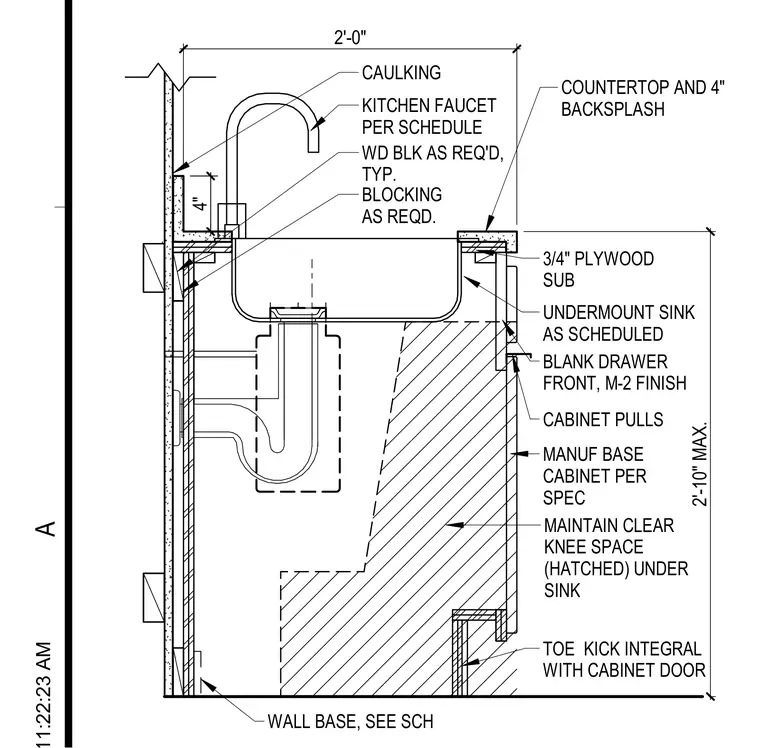

An interior millwork sink casework assembly is mounted against a finished wall. The manufactured base cabinet is anchored with wood blocking as required and features a toe kick integral with the cabinet door, a blank drawer front with an M-2 finish, and cabinet pulls. A three-quarter-inch plywood sub-countertop supports the countertop and four-inch backsplash, with caulking applied at joints. The undermount sink is installed below the counter with a kitchen faucet specified per schedule. The assembly maintains a clear knee space beneath the sink as hatched, with a wall base installed at the floor.
