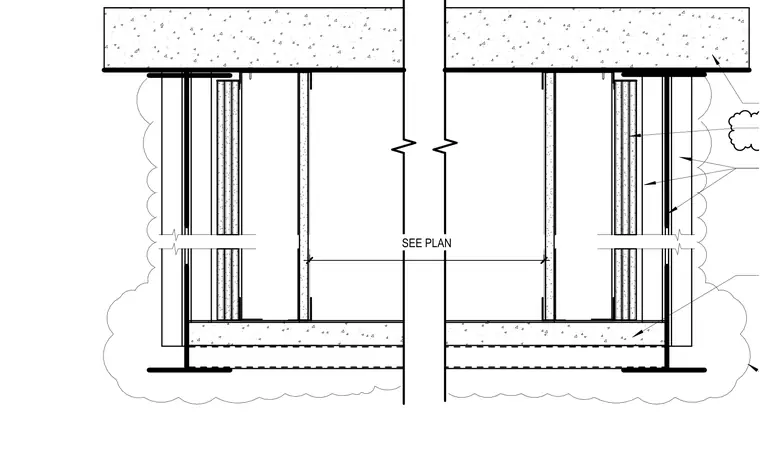

Three-hour horizontal rated shaft assembly constructed below a concrete floor slab supported by steel beams. The shaft partition utilizes multiple layers of gypsum wallboard mounted on metal studs, sized per plan. The assembly provides fire-rated separation for vertical shafts passing through horizontal floor assemblies.
