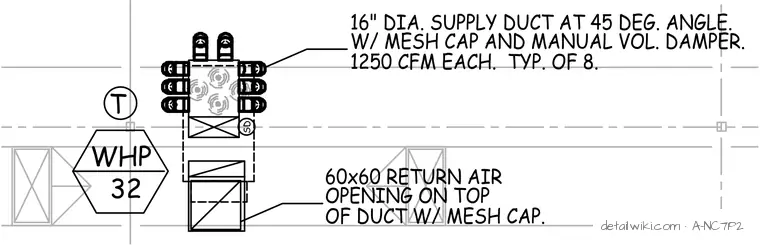

This assembly consists of a 60-inch by 60-inch return air opening located on the top of the duct, protected by a mesh cap. The supply system includes 16-inch diameter ducts oriented at a 45-degree angle, each equipped with a mesh cap and a manual volume damper. The system is designed for a capacity of 1250 cubic feet per minute per duct, with eight units typical for this configuration.
Text on the drawing
SD 60x60 RETURN AIR OPENING ON TOP OF DUCT W/ MESH CAP. WHP 32 16" DIA. SUPPLY DUCT AT 45 DEG. ANGLE. W/ MESH CAP AND MANUAL VOL. DAMPER. 1250 CFM EACH. TYP. OF 8. T
