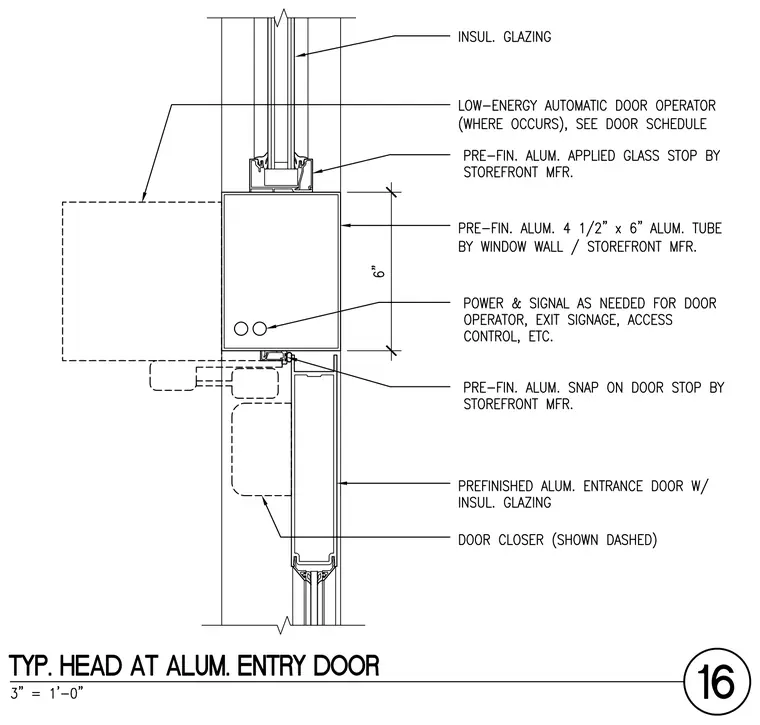

This vertical section details the head condition of an aluminum entrance door framed within a storefront system. The assembly utilizes a prefinished aluminum four and a half inch by six inch aluminum tube spanning horizontally above the door opening. A low-energy automatic door operator is mounted adjacent to the header, with power and signal conduits routed through the framing as required for access control and exit signage. Insulated glazing sits above the header, secured by a prefinished aluminum applied glass stop. Below the header tube, a prefinished aluminum snap-on door stop accommodates the prefinished aluminum entrance door equipped with insulating glass and a concealed door closer shown dashed.
