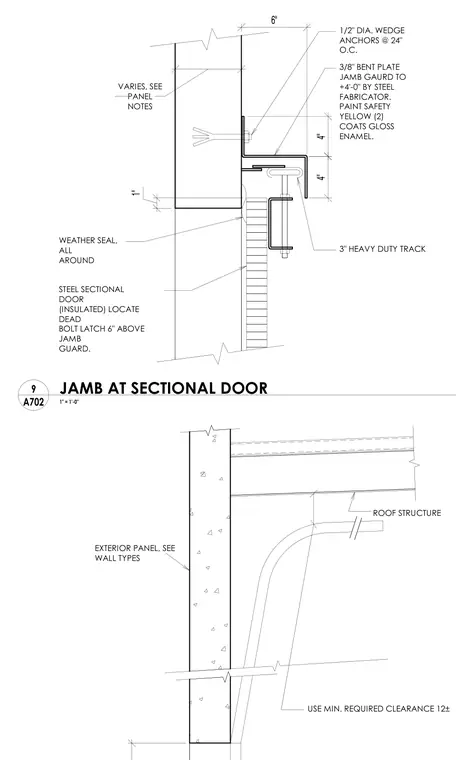

This plan detail shows the jamb condition for a steel sectional insulated door meeting an exterior wall panel. A three-eighths-inch bent plate jamb guard extends to plus four feet and is anchored to the wall using half-inch-diameter wedge anchors at twenty-four inches on center, finished with two coats of safety yellow gloss enamel. A three-inch heavy duty track supports the door, positioned with a dead bolt latch located six inches above the jamb guard. Continuous weather seal is provided all around, maintaining the required minimum clearance to the adjacent roof structure.
VARIES, SEE PANEL NOTES 1" 4" 4" 6" 1/2" DIA. WEDGE ANCHORS @ 24" O.C. 3/8" BENT PLATE JAMB GAURD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND USE MIN. REQUIRED CLEARANCE 12± ROOF STRUCTURE EXTERIOR PANEL, SEE WALL TYPES 1" = 1'-0" A702 9 JAMB AT SECTIONAL DOOR
