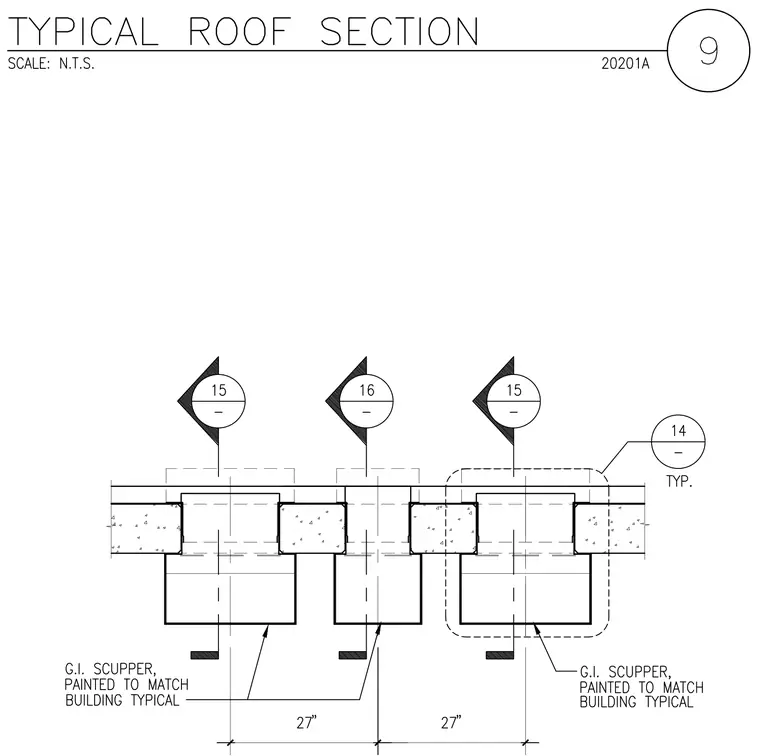

Galvanized iron scuppers are painted to match the building typical finish and are spaced at twenty-seven inches center-to-center. The assembly integrates with the roof structure and includes multiple detail reference callouts.
