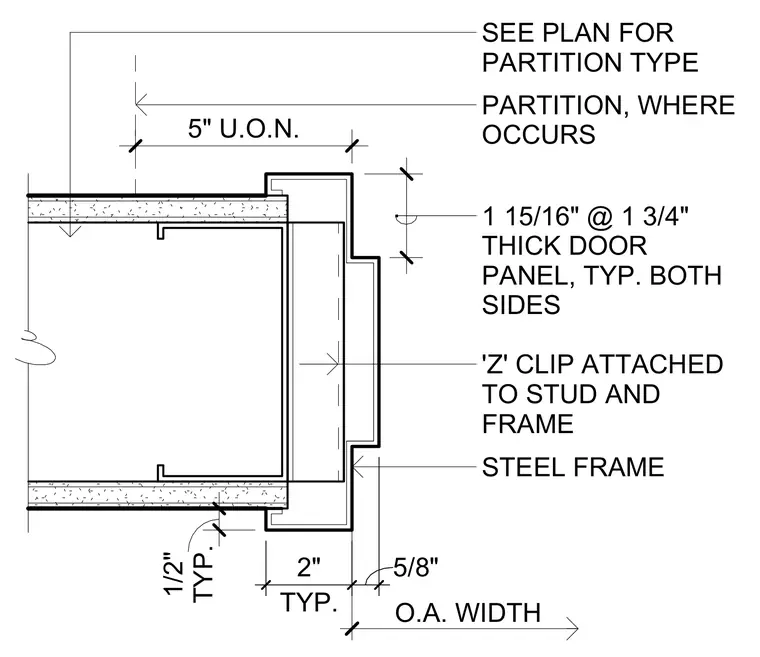

A Z-shaped clip secures a steel door frame to a metal stud wall assembly with a typical overall width of 5 inches unless otherwise noted. A 1-15/16 inch by 1-3/4 inch thick door panel is accommodated within the frame. The partition type is determined per plan where it intersects the frame.
SEE PLAN FOR PARTITION TYPE PARTITION, WHERE OCCURS TYP. 2" 5/8" 'Z' CLIP ATTACHED TO STUD AND FRAME STEEL FRAME TYP. 1/2" . 1 15/16" @ 1 3/4" THICK DOOR PANEL, TYP. BOTH SIDES O.A. WIDTH 5" U.O.N.
