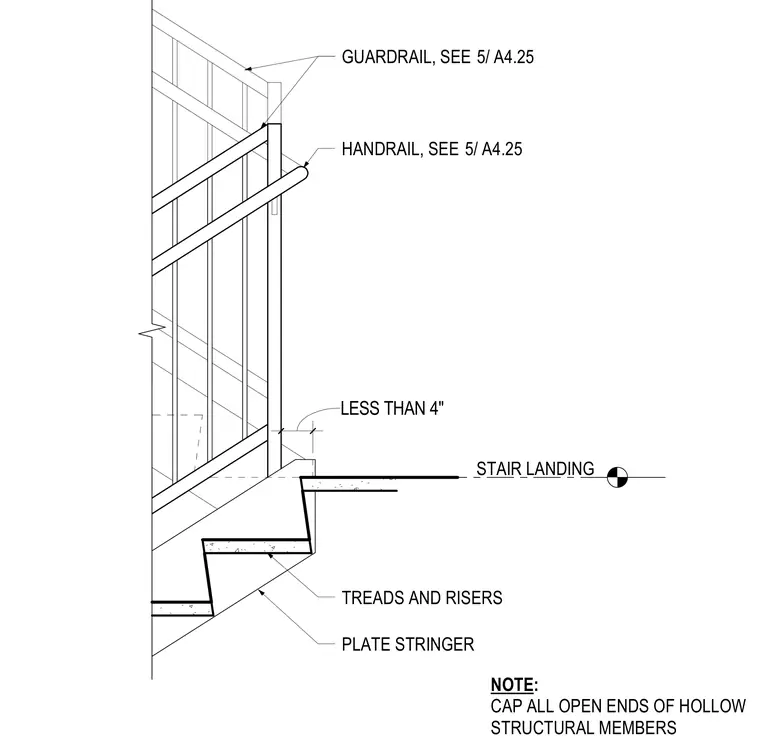

This stair section details the connection of a continuous rail system to a plate stringer stair landing assembly. Treads and risers meet the landing with standard spacing requirements maintained under four inches. All open ends of hollow structural members require end caps per the drawing notes. The guardrail and handrail mount to the structural supports and are referenced to related architectural details.
STAIR LANDING LESS THAN 4" TREADS AND RISERS PLATE STRINGER GUARDRAIL, SEE HANDRAIL, SEE NOTE: CAP ALL OPEN ENDS OF HOLLOW STRUCTURAL MEMBERS 5/ A4.25 5/ A4.25
