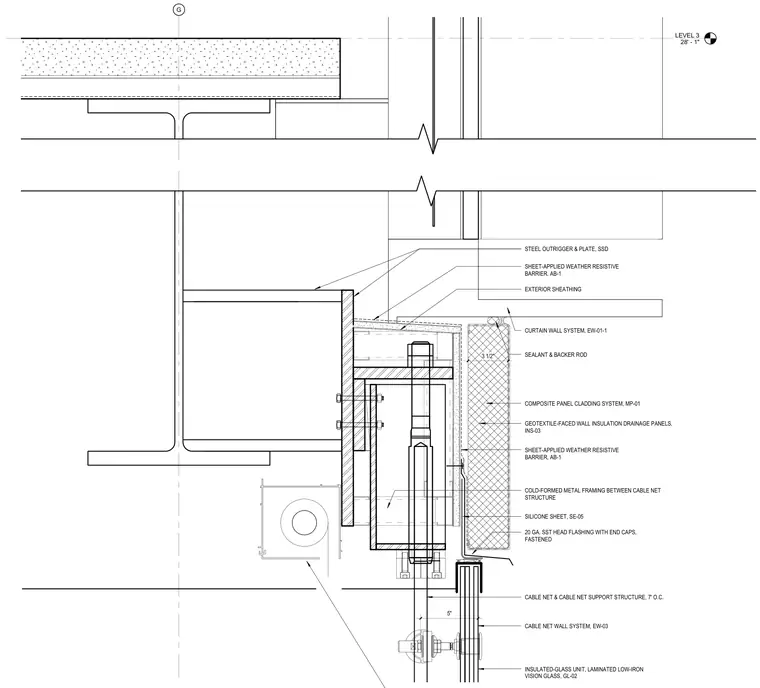

Cable Net Wall Head Detail at South Elevation

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)Composite

Elements

Walls Curtain Walls Facades / Cladding Waterproofing / Flashing Insulation Connections / Plates

About this detail

Head condition of a cable net wall system intersecting with a structural steel floor framing assembly at Level 3. A steel outrigger and plate anchor the cable net support structure back to the primary steel framing. Exterior sheathing backed by sheet-applied weather-resistive barrier AB-1 wraps the structural zone above a 20 gauge stainless steel head flashing with fastened end caps and silicone sheet SE-05. Geotextile-faced wall insulation drainage panels INS-03 and composite panel cladding system MP-01 form the opaque wall assembly. A curtain wall system EW-01-1 ties into the head condition with sealant and backer rod. Cold-formed metal framing spans between the cable net structure at seven feet on center, supporting an insulated glass unit featuring laminated low-iron vision glass GL-02.
