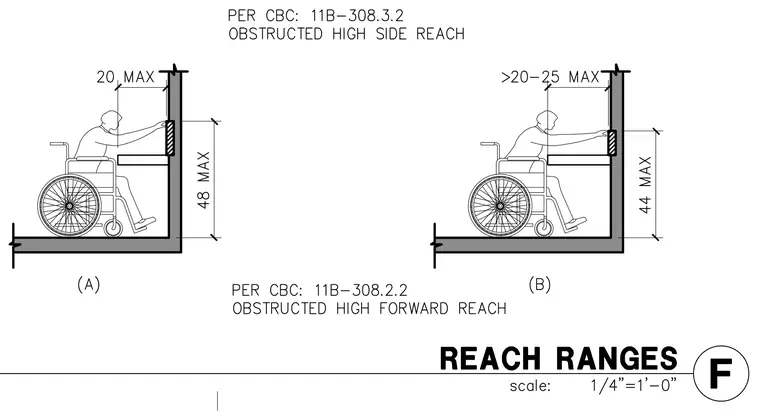

Wheelchair user reach ranges complying with California Building Code standards are illustrated for obstructed high side reach and obstructed high forward reach conditions. The first diagram outlines a maximum 20 inch reach depth with a maximum 48 inch height per CBC 11B-308.3.2. The second diagram outlines a reach depth greater than 20 inches up to a 25 inch maximum with a 44 inch maximum height per CBC 11B-308.2.2.
