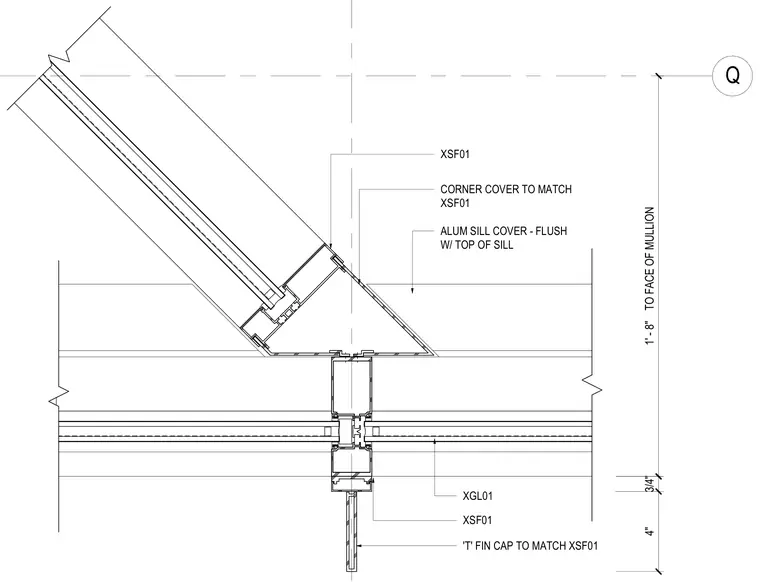

An aluminum storefront inside corner assembly connects two framing runs at an angle. The corner features a custom aluminum corner cover matching the XSF01 framing finish, accompanied by an aluminum sill cover set flush with the top of the sill. Glazing units XGL01 are retained within the storefront profiles. A 'T' fin cap matching finish XSF01 details the mullion intersection.
Q 'T' FIN CAP TO MATCH XSF01 XSF01 CORNER COVER TO MATCH XSF01 XGL01 XSF01 ALUM SILL COVER - FLUSH W/ TOP OF SILL 1' - 8" TO FACE OF MULLION 4" 3/4"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
