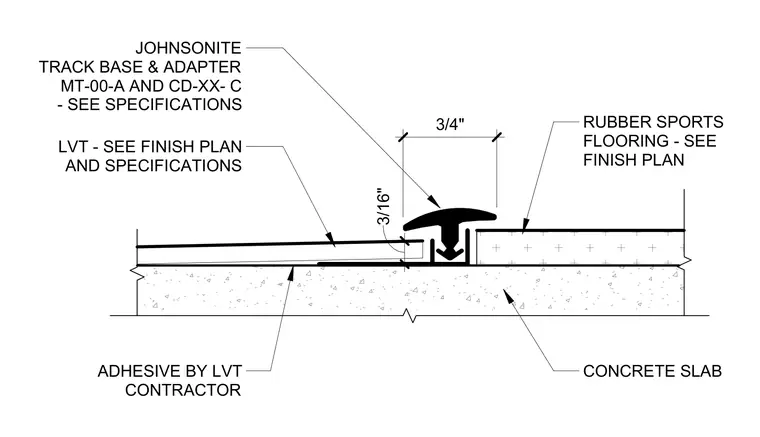

Rubber sports flooring meets luxury vinyl tile over a concrete slab with a Johnsonite track base and adapter transition profile. The luxury vinyl tile is installed over an adhesive specified by the LVT contractor. The Johnsonite track base and adapter system accommodates the floor finish transition with a three-quarter-inch overall profile width and a three-sixteenth-inch height. Both flooring materials are installed per finish plans and specifications.
RUBBER SPORTS FLOORING - SEE FINISH PLAN CONCRETE SLAB ADHESIVE BY LVT CONTRACTOR JOHNSONITE TRACK BASE & ADAPTER MT-00-A AND CD-XX- C - SEE SPECIFICATIONS LVT - SEE FINISH PLAN AND SPECIFICATIONS 3/4" 3/16"
