A-NAW78 — Rated Wall at Stair to Floor

Architectural · A-NAW78

Rated Wall at Stair to Floor

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Cold-formed Steel Steel Timber / Wood

Elements

Connections / Plates Floors / Slabs Partitions Railings / Guards Stairs Walls

Connections

Expansion / Slip Connection

Text on the drawing

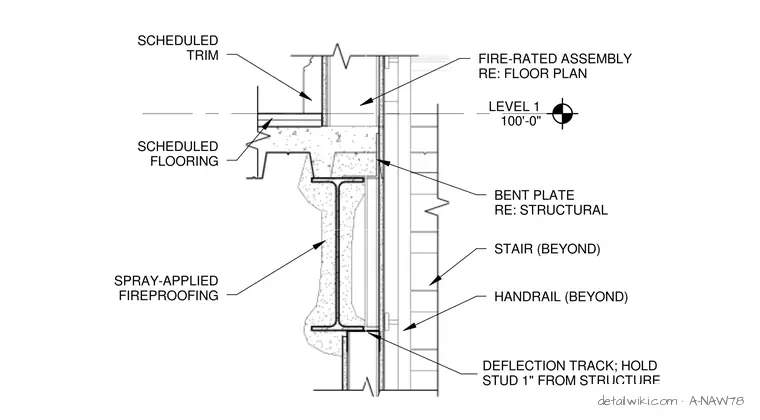

LEVEL 1 100'-0" SPRAY-APPLIED FIREPROOFING HANDRAIL (BEYOND) STAIR (BEYOND) DEFLECTION TRACK; HOLD STUD 1" FROM STRUCTURE BENT PLATE RE: STRUCTURAL FIRE-RATED ASSEMBLY RE: FLOOR PLAN SCHEDULED FLOORING SCHEDULED TRIM
