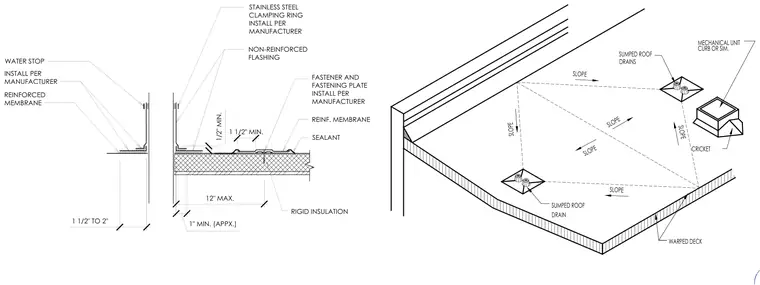

The roof assembly incorporates rigid insulation topped with a reinforced membrane and non-reinforced flashing secured by fastener and fastening plate components. A stainless steel clamping ring is installed per the manufacturer instructions alongside a water stop and sealant. Sumped roof drains, crickets, and mechanical unit curbs are configured with sloped warped deck drainage.
CRICKET SLOPE SLOPE WARPED DECK DRAIN SUMPED ROOF SLOPE DRAINS SUMPED ROOF CURB OR SIM. MECHANICAL UNIT SLOPE SLOPE SLOPE INSTALL PER MANUFACTURER REINFORCED MEMBRANE WATER STOP STAINLESS STEEL CLAMPING RING INSTALL PER MANUFACTURER FASTENER AND FASTENING PLATE INSTALL PER MANUFACTURER NON-REINFORCED FLASHING REINF. MEMBRANE SEALANT RIGID INSULATION 1 1/2" TO 2" 12" MAX. 1" MIN. (APPX.) 1/2" MIN. 1 1/2" MIN.
