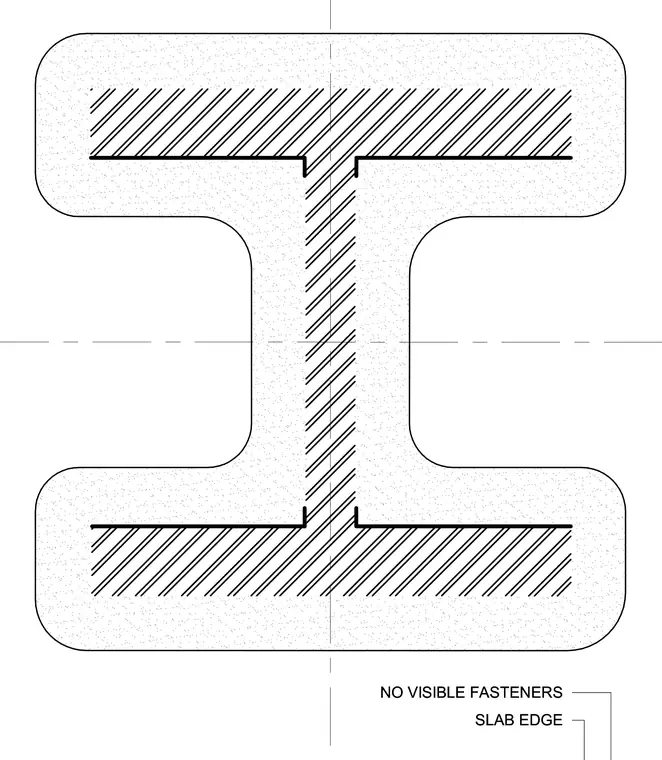

Concrete-encased steel beam profile detailing a slab edge with no visible fasteners. The steel section is fully embedded within the concrete mass, concealing all structural connections and fasteners from the exterior surface.
