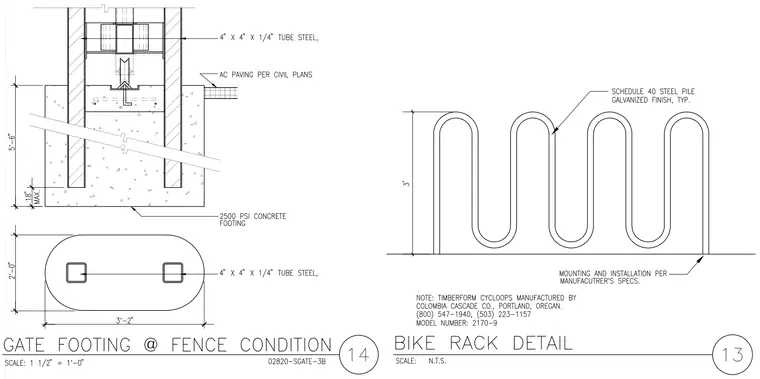

The gate footing assembly features two 4-inch by 4-inch by 1/4-inch tube steel posts anchored into a 2500 PSI concrete footing measuring 3 feet 2 inches long by 2 feet wide, set at an 18-inch maximum depth and 5-foot 6-inch height with asphalt concrete paving adjacent per civil plans. The bike rack detail shows a Timberform Cycloops manufactured by Columbia Cascade Company, model number 2170-9, constructed from schedule 40 steel pile with a galvanized finish and a 3-foot height, mounted according to manufacturer specifications.
