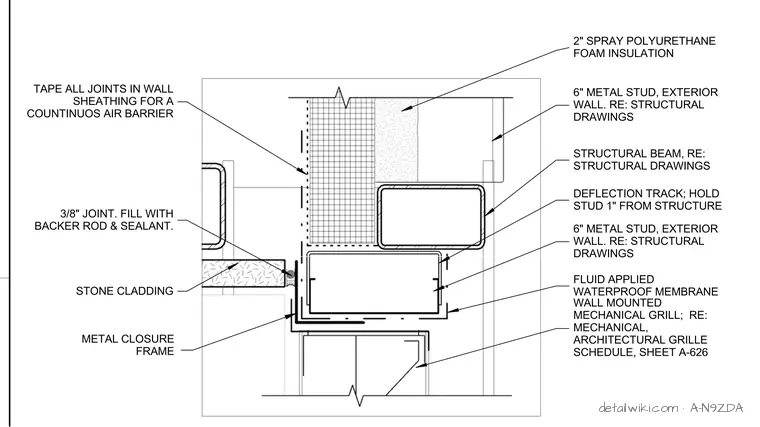

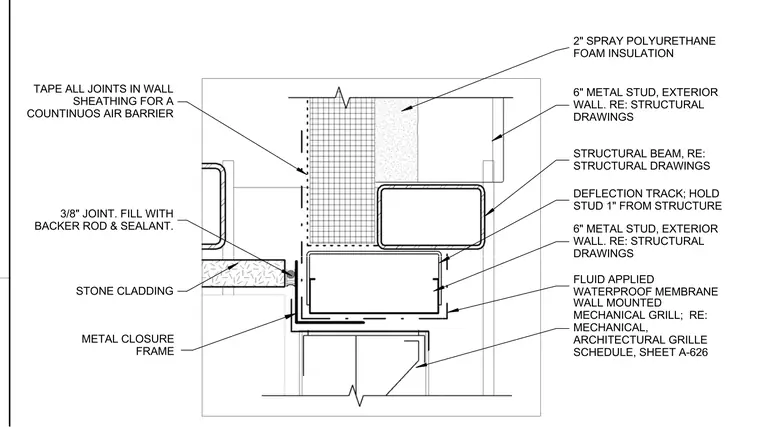

A six-inch exterior metal stud wall terminates below a structural beam with a deflection track holding the stud one inch clear of the structure. The assembly incorporates two inches of spray polyurethane foam insulation and a sheathing layer with taped joints for a continuous air barrier. A fluid-applied waterproof membrane protects the wall plane behind the metal closure frame and the wall-mounted mechanical grille. The stone cladding meets the assembly with a three-eighths-inch joint filled with backer rod and sealant.
2" SPRAY POLYURETHANE FOAM INSULATION 6" METAL STUD, EXTERIOR WALL. RE: STRUCTURAL DRAWINGS STRUCTURAL BEAM, RE: STRUCTURAL DRAWINGS FLUID APPLIED WATERPROOF MEMBRANE DEFLECTION TRACK; HOLD STUD 1" FROM STRUCTURE 6" METAL STUD, EXTERIOR WALL. RE: STRUCTURAL DRAWINGS WALL MOUNTED MECHANICAL GRILL; RE: MECHANICAL, ARCHITECTURAL GRILLE SCHEDULE, SHEET A-626 TAPE ALL JOINTS IN WALL SHEATHING FOR A COUNTINUOS AIR BARRIER 3/8" JOINT. FILL WITH BACKER ROD & SEALANT. METAL CLOSURE FRAME STONE CLADDING
