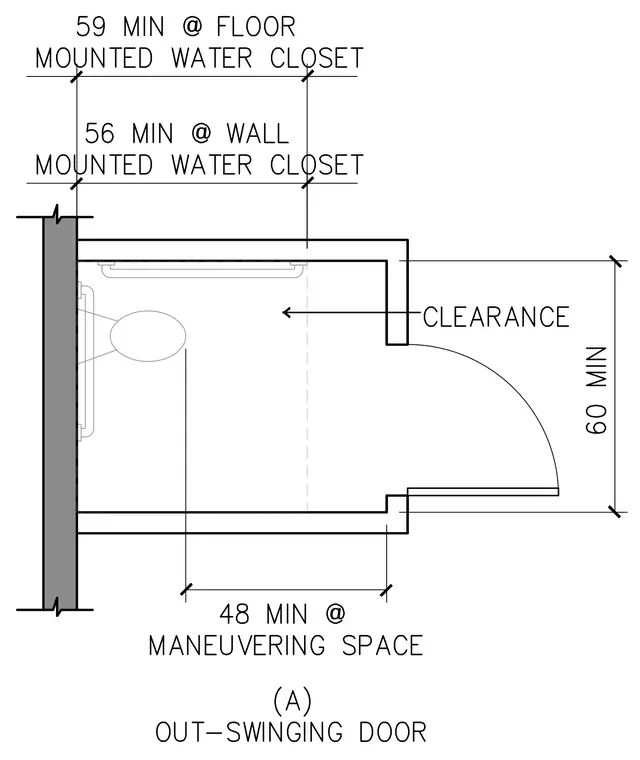

An accessible toilet compartment layout shows a minimum width of sixty inches and a minimum maneuvering space depth of forty-eight inches at the out-swinging door. The compartment requires a minimum depth of fifty-six inches for a wall-mounted water closet and fifty-nine inches for a floor-mounted water closet. Grab bars are positioned along the rear and side walls.
