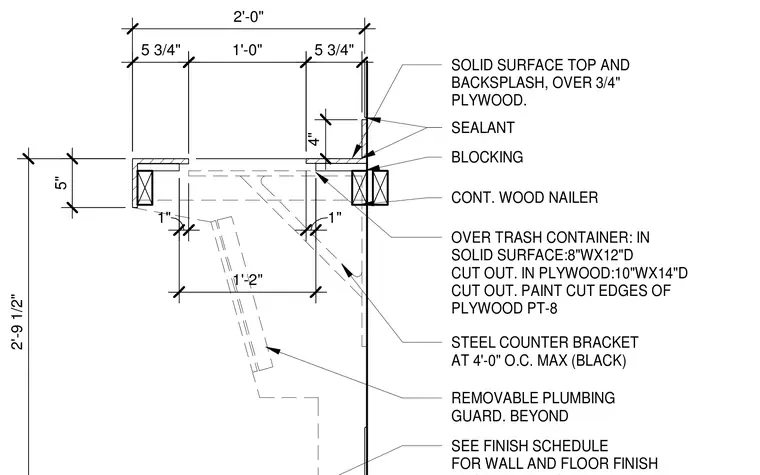

The vanity counter features a solid surface top and backsplash installed over three-quarter inch plywood supported by black steel counter brackets spaced at a maximum of four feet on center. Continuous wood nailers and wood blocking provide structural attachment along the wall, with cut edges of the plywood painted with paint finish PT-8. A trash container cutout measures eight inches wide by twelve inches deep in the solid surface and ten inches wide by fourteen inches deep in the underlying plywood. Sealant is applied at the solid surface joints and backsplash interface. A removable plumbing guard is visible beyond, along with wall and floor finishes referenced in the finish schedule.
5 3/4" 1'-2" 1" 2'-9 1/2" 5" 4" 1'-0" 5 3/4" 2'-0" SOLID SURFACE TOP AND BACKSPLASH, OVER 3/4" PLYWOOD. SEALANT SEALANT BLOCKING CONT. WOOD NAILER OVER TRASH CONTAINER: IN SOLID SURFACE:8"WX12"D CUT OUT. IN PLYWOOD:10"WX14"D CUT OUT. PAINT CUT EDGES OF PLYWOOD PT-8 STEEL COUNTER BRACKET AT 4'-0" O.C. MAX (BLACK) REMOVABLE PLUMBING GUARD. BEYOND SEE FINISH SCHEDULE FOR WALL AND FLOOR FINISH 1"
