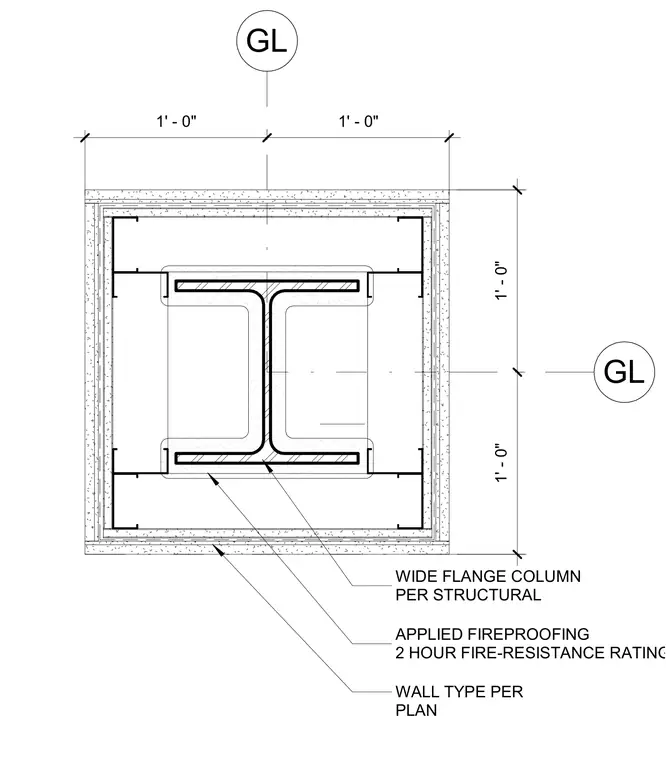

A wide flange structural steel column sits at the intersection of grid lines, enclosed within a framed wall assembly sized per plan. The steel column is coated with applied fireproofing providing a two-hour fire-resistance rating. The surrounding architectural wall framing encases the fireproofed steel shape to form an exterior column enclosure.
GL GL WALL TYPE PER PLAN WIDE FLANGE COLUMN PER STRUCTURAL APPLIED FIREPROOFING 2 HOUR FIRE-RESISTANCE RATING 1' - 0" 1' - 0" 1' - 0" 1' - 0"
