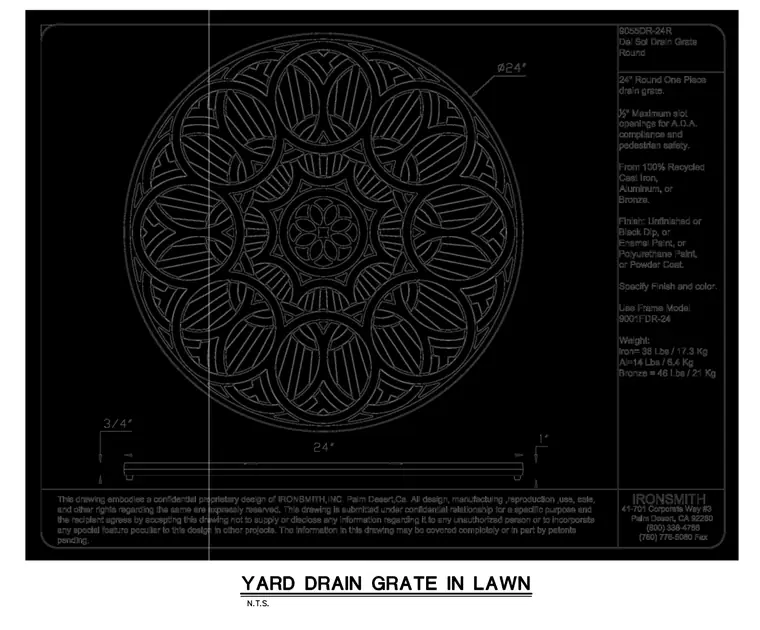

A twenty-four-inch round one-piece drain grate features a decorative pattern with half-inch maximum slot openings for ADA compliance and pedestrian safety. The assembly is manufactured from one hundred percent recycled cast iron, aluminum, or bronze with an unfinished, black dip, enamel paint, polyurethane paint, or powder coat finish. The overall diameter measures twenty-four inches with a thickness of three-quarters of an inch and a one-inch edge dimension. It is designed to be used with frame model 9001FDR-24, with total weights varying by material as thirty-eight pounds for iron, fourteen pounds for aluminum, and forty-six pounds for bronze.
