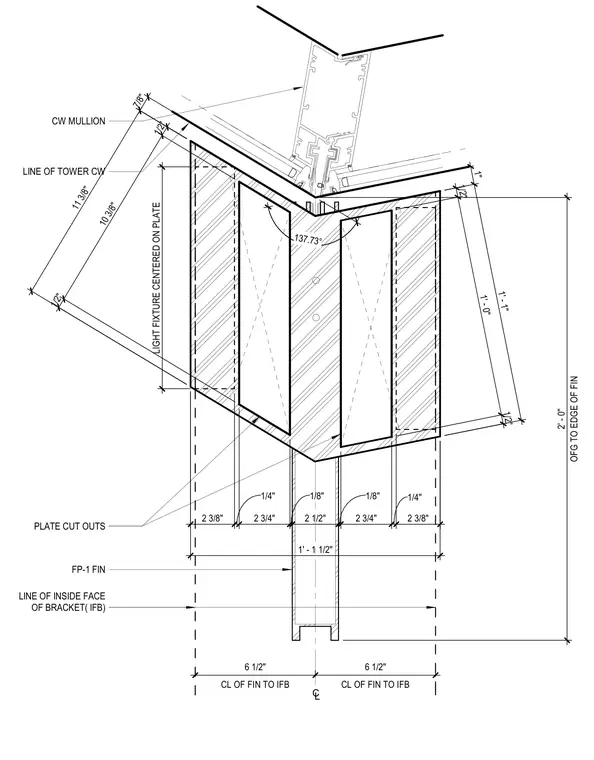

A crown light valance assembly is positioned at a 137.73 degree curtain wall corner. The layout features an FP-1 steel fin plate with designated plate cut outs, aligned with a central light fixture centered on the plate. Dimensions establish spacing from the tower curtain wall line and inside face of bracket, with symmetrical 6-1/2 inch dimensions from the fin centerline to the inside face of bracket.
C L O F F I N T O I F B 6 1 / 2 " C L O F F I N T O I F B 6 1 / 2 " 7 / 8 " 1 " 1 ' - 1 " L I G H T F I X T U R E C E N T E R E D O N P L A T E 2 3 / 8 " 1 / 4 " 2 3 / 4 " 1 / 8 " 2 1 / 2 " 1 / 8 " 2 3 / 4 " 1 / 4 " 2 3 / 8 " LINE OF TOWER CW FP-1 FIN PLATE CUT OUTS LINE OF INSIDE FACE OF BRACKET( IFB) 1 ' - 1 1 / 2 " 1 / 2 " 1 ' - 0 " 1 / 2 " 1 1 3 / 8 " 1 / 2 " 1 0 3 / 8 " 1 / 2 " CW MULLION CL 1 3 7 . 7 3 ° O F G T O E D G E O F F I N 2 ' - 0 "
