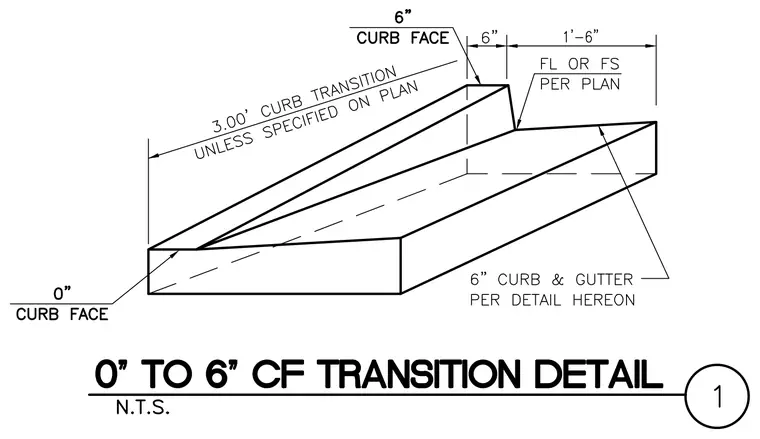

A concrete curb transition ramps from a zero-inch curb face up to a six-inch curb face over a length of three feet unless specified otherwise on plan. The standard six-inch curb and gutter profile is maintained per detail hereon, featuring a six-inch curb face width and a one-foot six-inch dimension for the floor or flowline per plan.
