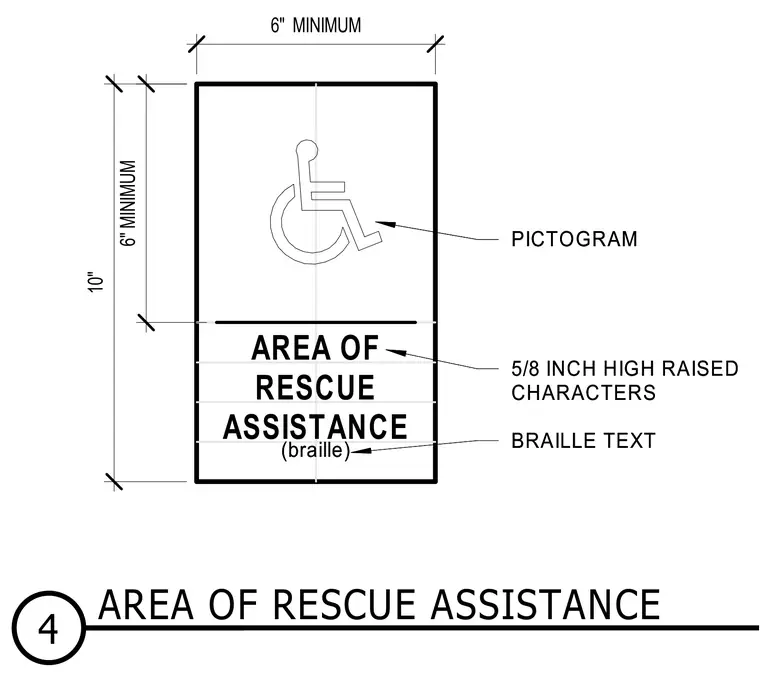

An area of rescue assistance signage detail specifies a minimum width of six inches and a minimum height of ten inches. The sign incorporates an accessibility pictogram, five-eighths-inch high raised characters reading AREA OF RESCUE ASSISTANCE, and integrated braille text below the lettering.
6" MINIMUM 10" (braille) AREA OF RESCUE ASSISTANCE BRAILLE TEXT 5/8 INCH HIGH RAISED CHARACTERS PICTOGRAM 6" MINIMUM (braille) BRAILLE TEXT 5/8 INCH HIGH RAISED CHARACTERS PICTOGRAM 4 AREA OF RESCUE ASSISTANCE
