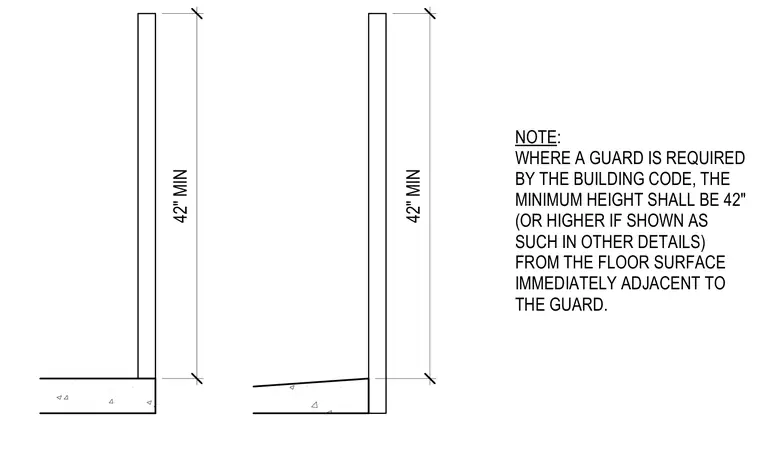

The guardrail maintains a minimum height of 42 inches measured vertically from the adjacent floor surface. Where code requires a guard, this clearance is maintained consistently across flat and sloping floor configurations.
42" MIN 42" MIN NOTE: WHERE A GUARD IS REQUIRED BY THE BUILDING CODE, THE MINIMUM HEIGHT SHALL BE 42" (OR HIGHER IF SHOWN AS SUCH IN OTHER DETAILS) FROM THE FLOOR SURFACE IMMEDIATELY ADJACENT TO THE GUARD.
